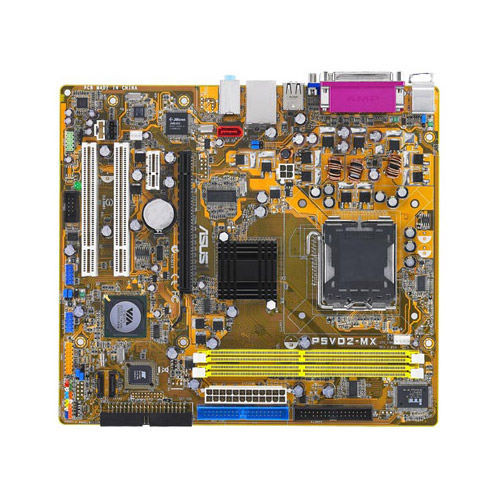

Материнська плата Asus P5VD2-MX, s775

Материнська плата Asus P5VD2-MX, s775

Характеристики:

• CPU
  LGA775 socket for Intel Pentium D/Pentium 4/Celeron
  Support Intel® Presler 65nm Dual core and Core™2 Duo CPU
  Compatible with Intel 05B/05A and 04B/04A processors
  Support Intel EM64T/EIST/C1E/TM2/Hyper-Threading Technology
• Chipset
  VIA P4M890
  VIA VT8237A
• Front Side Bus
  1066/800/533 MHz
• Memory
  2 x 240-pin DIMM sockets support max. 4GB DDR2 533/400 non-ECC unbuffered memory
• Expansion Slots
  1 x PCI-E x 16
  1 x PCI-E x 1
  2 x PCI
  (Note: PCI-E x 1 and JMicron JMB363 SATA controller can not be used simultaneously)
• VGA
  Integrated Graphics, up to 64MB shared memory
  Support max. resolution to 2048 x 1536 (@75Hz)
  Support max. refresh rate to 100Hz (@1600 x 1200)
• Storage/RAID
  VIA 8237A South Bridge:
  *2 x UltraDMA 133/100/66/33
  *2 x Serial ATA with RAID 0, 1, JBOD function
  JMicron JMB363 SATA controller:
  *1 x Internal Serial ATA 3 Gb/s
  *1 x External Serial ATA 3 Gb/s (SATA On-the-Go)
  *supports RAID 0, 1 & JBOD
• LAN
  Realtek RTL8201CL 10/100 LAN Controller
• Audio
  High Definition Audio, ADI AD1986A SoundMAX 6-channel CODEC
  Support Jack-Sensing interface
• USB
  Max. 8 USB2.0 ports
• Overclocking Features
  ASUS C.P.R.(CPU Parameter Recall)
  SFS (Stepless Frequency Selection) from 100MGz up to 300MHz at 1MHz increment
  Adjustable FSB/DDR ratio. Fixed PCI-E/SATA frequencies.
• Other ASUS Special Features
  CrashFree BIOS 2
  ASUS Q-Fan
  ASUS EZ Flash
  MyLogo
• BIOS
  4 Mb Flash ROM,Award BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS 2.3
• Manageability
  WOL by PME, WOR by PME, Chassis Intruction, PXE
• Back Panel I/O Ports
  1 x Parallel
  1 x External SATA
  1 x VGA Port
  1 x PS/2 Keyboard
  1 x PS/2 Mouse
  1 x RJ45
  4 x USB 2.0/1.1
  6-Channel Audio I/O
• Internal I/O Connectors
  2 x USB 2.0 connectors support additional 4 USB 2.0 ports
  1 x COM connector
  CPU / Chassis fan connector
  1 x S/PDIF out connector
  Front panel Audio connector
  CD / AUX audio-in connector
  24-pin ATX Power connector
  4-pin ATX 12V Power connector
  Chassis intrusion
  System Panel
• Support Disc
  Drivers
  ASUS PC Probe
  ASUS LiveUpdate Utility
  Anti-virus software (OEM version)
• Accessories
  1 x Serial ATA cables
  1 x SATA power cable
  1 x UltraDMA 133/100/66 cable
  1 x FDD cable
  1 x I/O Shield
  User's manual
